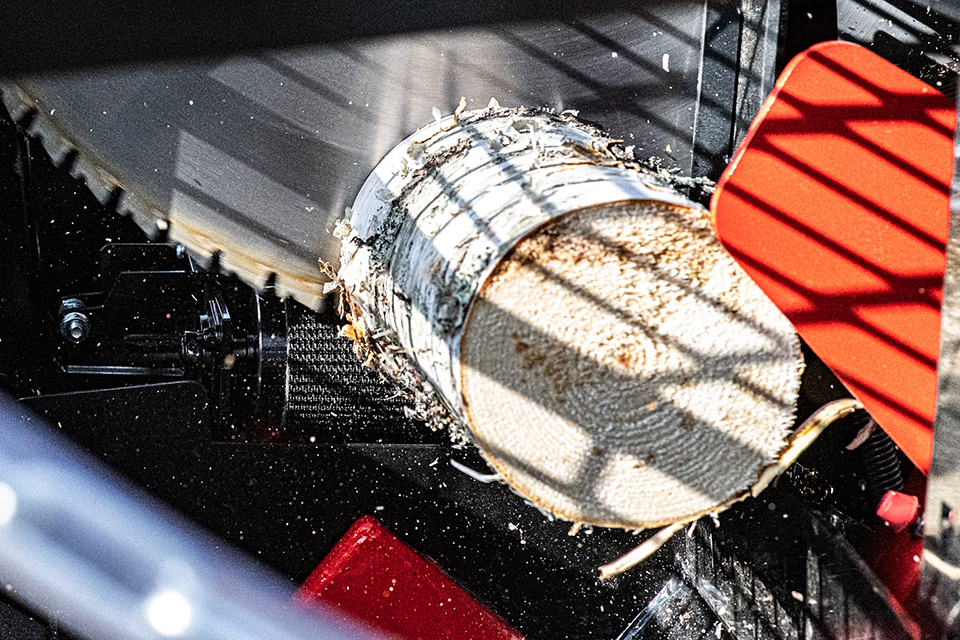

The Palax C751 series revolutionizes firewood processing with its unbelievable speed and power. The C751 has a excellent log flow from the in-feed conveyor to the discharge conveyor. The Palax C751 is available as a Pro+ or a Smart version. The Smart version comes with the X-Aim system. The C751 series is equipped with the market’s fastest 750 mm hard-tipped blade that cuts effortlessly through logs up to 30 cm /11.8" thick.

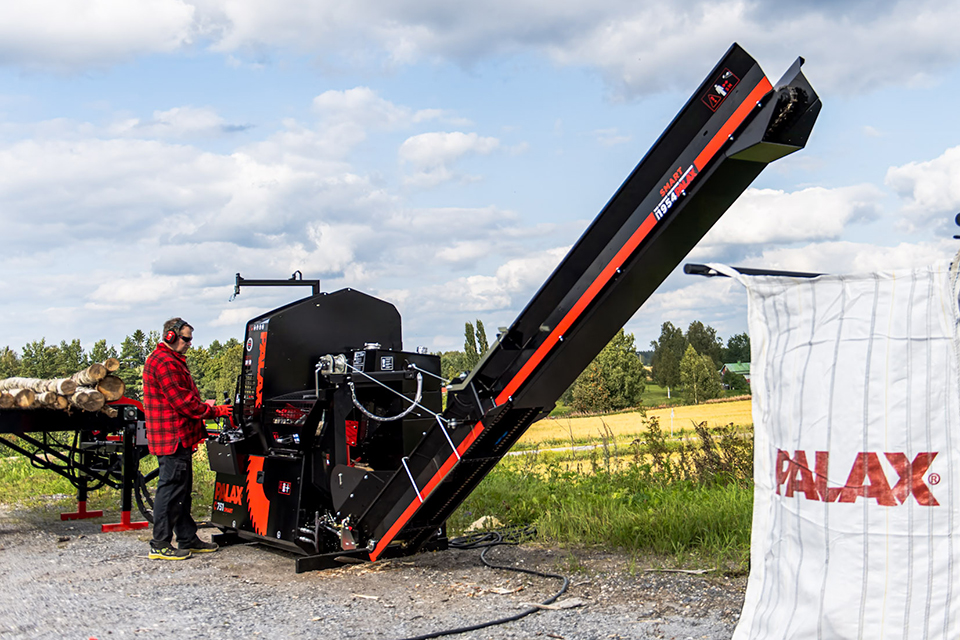

Both models have the PowerSpeed splitting feature as standard for an optimized splitting speed with the right force. The precisely engineered geometry of the Hardox splitting blade reduces the required force and enhances durability and longevity. New in Smart model is the half-stroke splitting feature for logs shorter than 30 cm 11.8". With a robust splitting blade and improved log clamp the processor is very comfortable and safe to operate. The debris grate of the splitting groove collects any debris created from the splitting, resulting in clean and easy-to-dry wood. An in-feed conveyor and a 4.3 m (14 ft) swinging discharge conveyor come as standard with the processor. Equipped with lubed-for-life ball bearings the machine operates precisely, easily and virtually without maintenance.

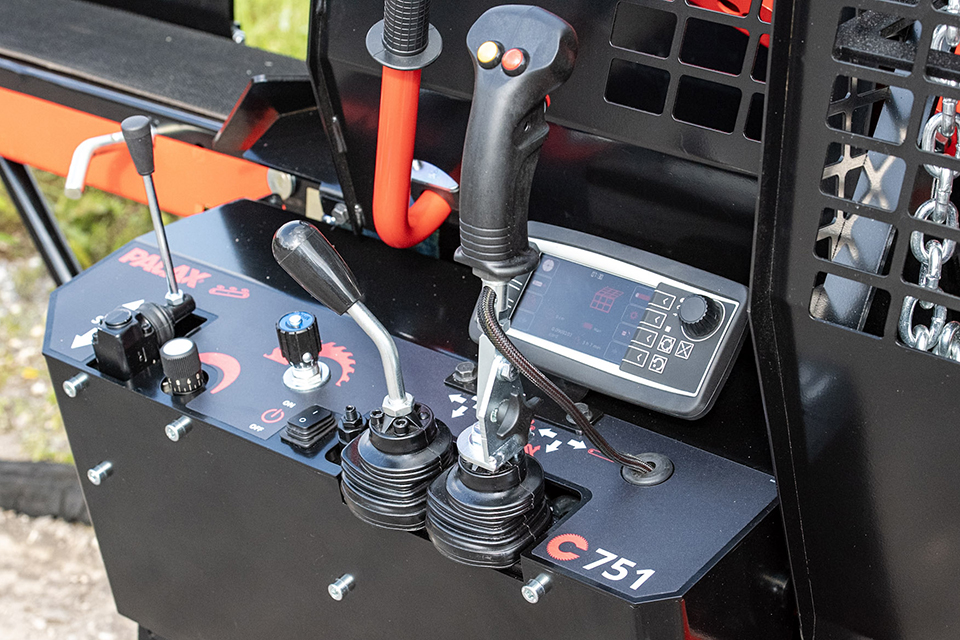

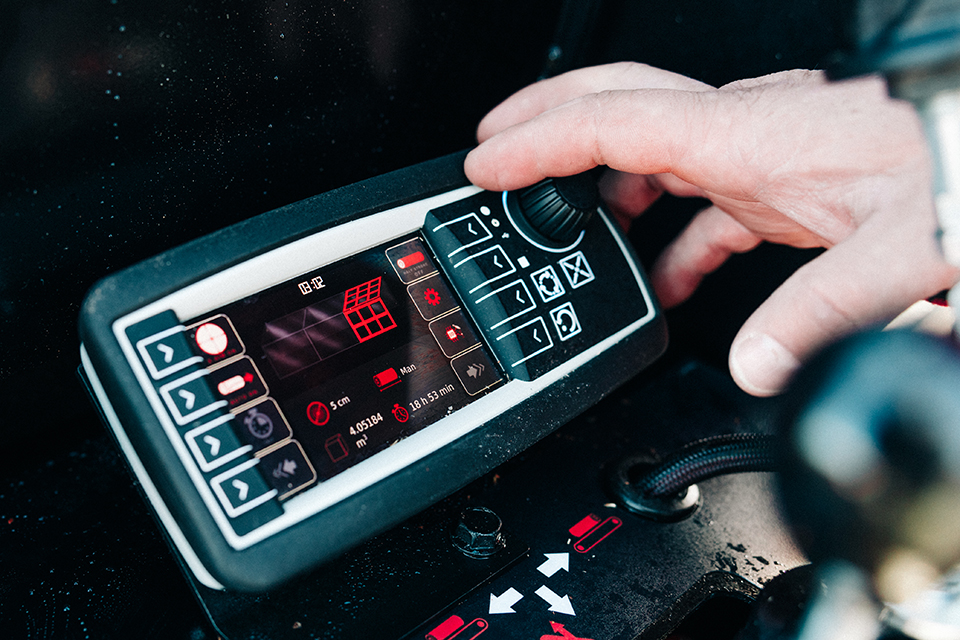

Automatic tightening of the V-belts keeps the angular gear belts at the correct tightness reducing strain on the transmission and significantly extending the service life of the belts. The Smart and Pro+ models boast a revamped user interface to maintain peak efficiency throughout the workday. Additionally, the C751 firewood processor has fewer maintenance points than its predecessor, allowing contractors to focus on the task at hand. The C751 series is available as a PTO tractor driven.
| Tractor P.T.O. driven |
|---|
| Splitting cylinder 9,000 kg / 19,800 lbs |
| PowerSpeed cylinder automatically adjusts splitting force and speed |
| Articulated shaft at 450 r.p.m. |
| TRANSMISSION |
| Articulated shaft, suitable size e.g. Bondioli 143 |
| OUTPUT |
| Speed 2.2 sec |
| Maximum diameter of log: 30 cm / 11.8" |
| Cutting length: 20 to 57 cm / 7.9" to 22.4" |
| Hard metal blade 750 mm / 29.5" |
| LOG SPLITTING |
| Splitting wedge 2/4-way as standard |
| Splitting wedge 2/6-way or 2/8-way as an option |
| Hydraulic height adjustment of the quick-release splitting wedge |
| Automatic log-stop |
| Multi-phase debris removal |
| Control levers with ball bearings |
| DISCHARGE CONVEYOR |
| Conveyor: length 4.3 m / 14.1 ft with 2 chains and scrapers |
| Lifting winch for conveyor |
| Foldable and swinging conveyor |
| Automatic tightening of the conveyor chains |
| Approximate values for all specifications. |
