A robust firewood processor for contract work.

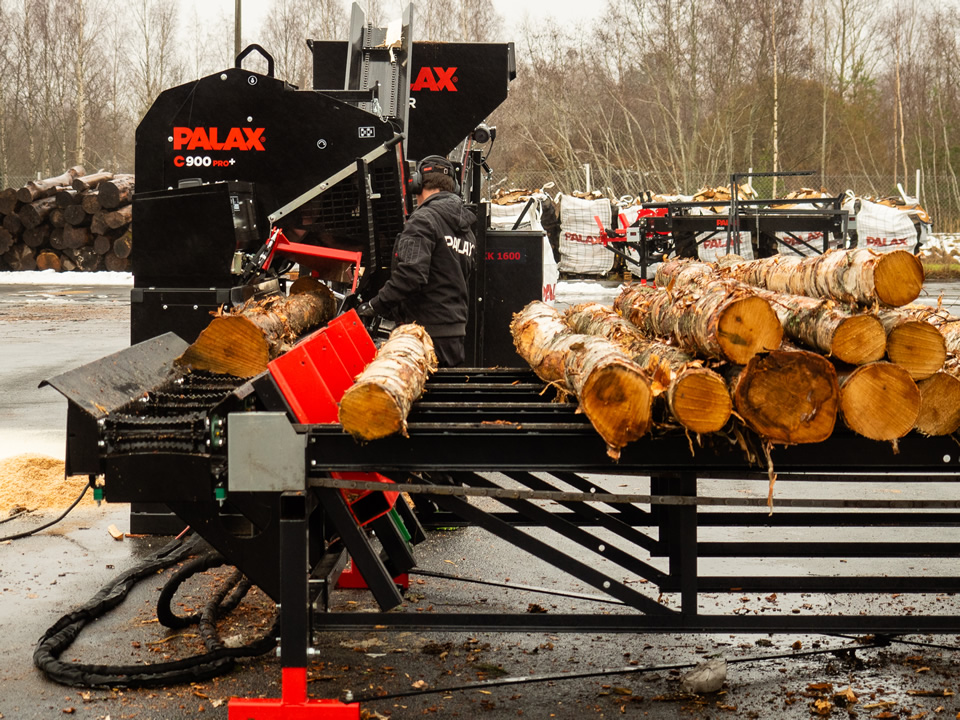

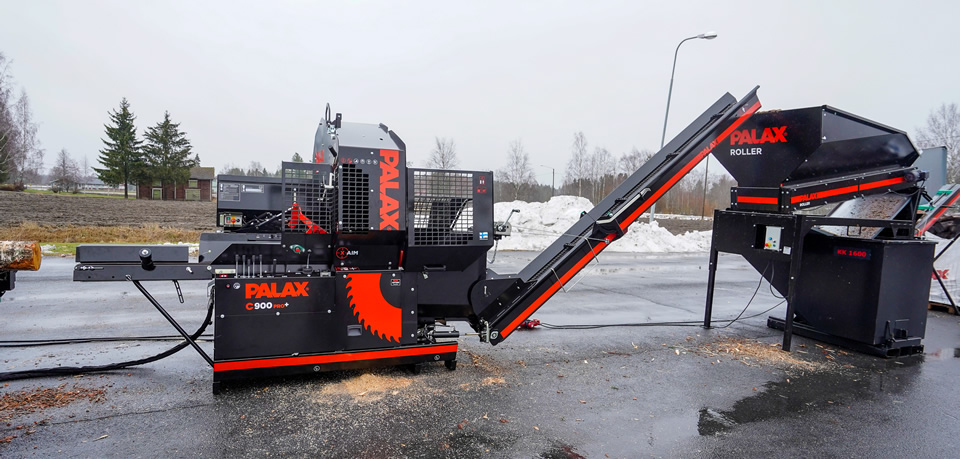

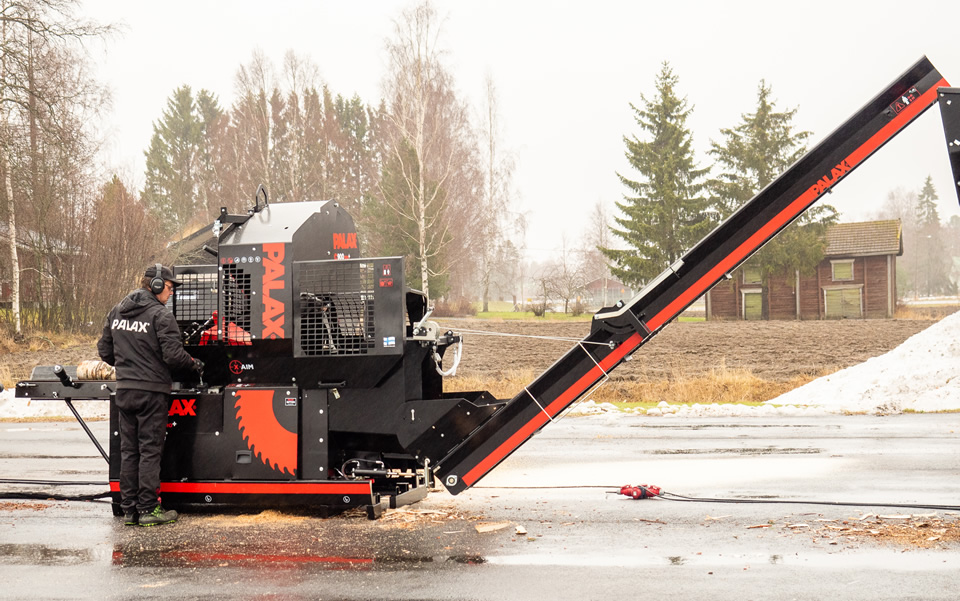

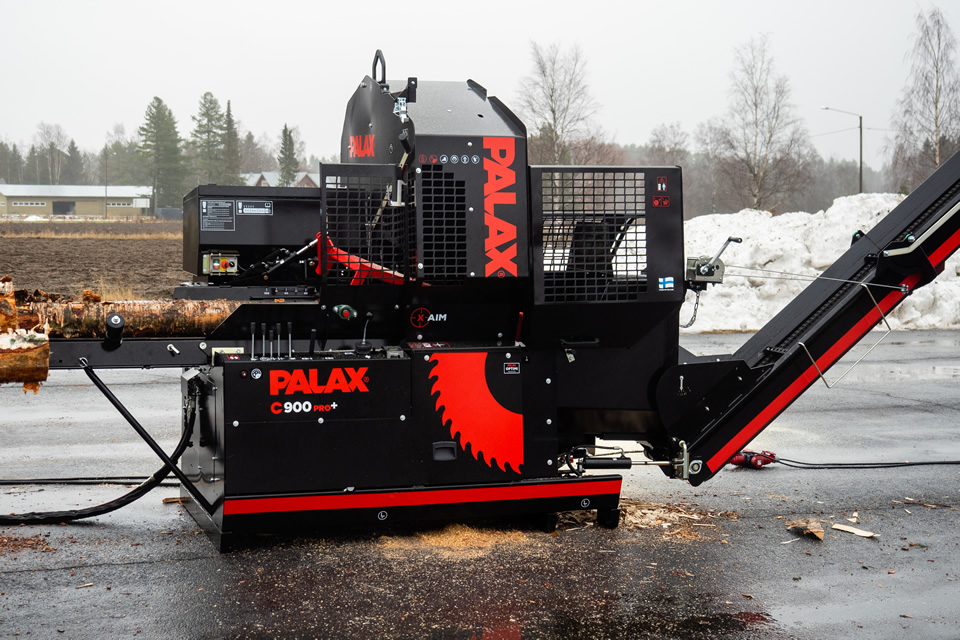

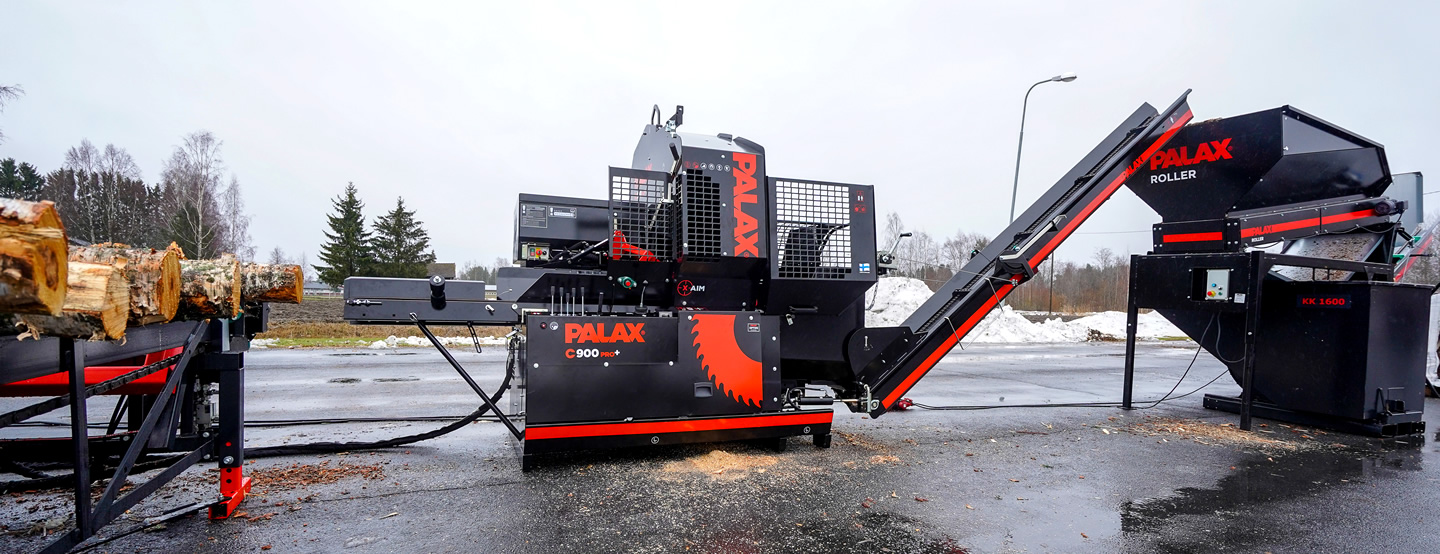

The new generation Palax C900.2 Pro+ Powerspeed is a firewood processor with a circular saw-blade for professional use in demanding conditions

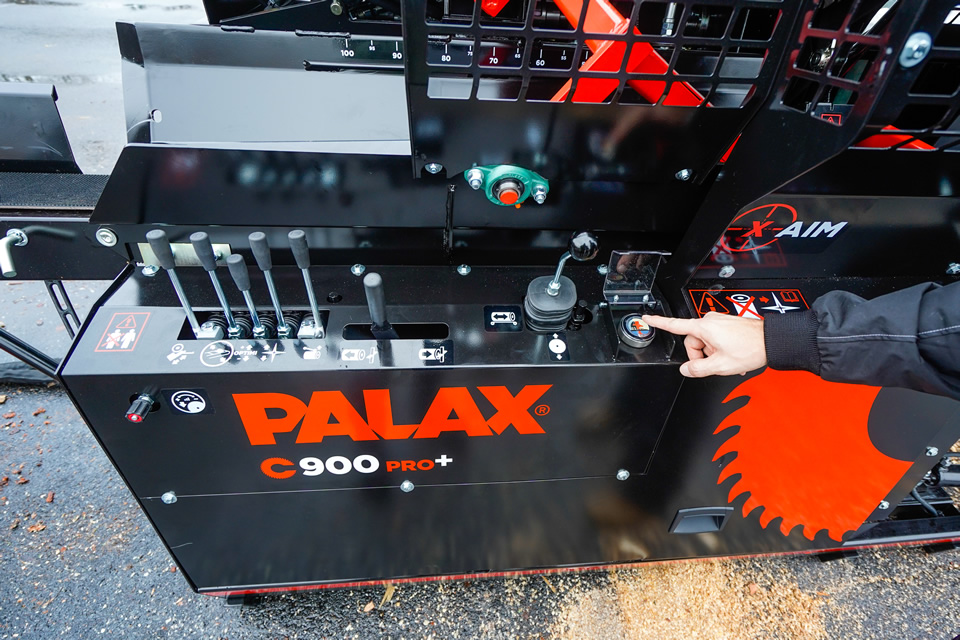

In this redesigned powerhouse, the focus is on practicality, without forgetting the visual appearance. The elegance and comfort of use is improved by the control panel with height adjustment according to the operator's height. Processing firewood no longer places a strain on the body!
The Palax C900.2 is fitted with an unbeatably fast 900 mm hard-metal blade. In addition to the tireless blade, the splitting length of the machine is controlled by the patented Palax Optimi system. Together with the automatic high-speed valve, it makes the splitting operation unbeatably fast. The machine is equipped with a hydraulic log clamp and a discharge conveyor with adjustable speed. The machine also comes with quick-connectors for the Palax log deck. The all-hydraulic control, the sturdy in-feed conveyor together with the 4.3-m long discharge conveyor, make the processing of firewood effective and easy.
The Palax C900.2 is the little brother of the C1000 Pro+. The processor has many of the same qualities and features as the big
one. The C900.2 has a 900 mm / 35.4" overhead hard-metal blade. Cut up to 37 cm / 14.6 " diameter wood. It has the patented Palax
Optimi system and the automatic high-speed valve for splitting. The fully hydraulic control, the in-feed conveyor and the 4.3 m /
14.1 ft long discharge conveyor makes firewood processing quick and easy.
The C900 Pro+ Powerspeed is equipped with a 10 ton / 22,000 lbs splitting cylinder and it also has a powerspeed booster. It has a 2/4-way axe as standard and as an option a 2/6-way and a 2/8-way axe are available.
| Tractor P.T.O. driven |
| HYDRAULICS |
|---|
| Splitting cylinder for C900 Pro+ Powerspeed: 10,000 kg / 22,000 lbs |
| Hydraulic oil ISO VGA 32 (VGA 46 for hot conditions): 80 l / 21.1 G? |
| Quick couplings for hydraulic rear feed roller |
| Hydraulic oil cooler as option |
| C900 Pro+: Work + return motion: Full force 3.3 seconds (log length 13") |
| C900 Pro+: Work + return motion: High speed 4.6?? seconds (log length 13") |
| Automatic high-speed valve / Powerspeed valve |
| Flow of hydraulic pump at 500 r.p.m. |
| Fully hydraulic control of the machine (joysticks) |
| TRANSMISSION AND CONTROL |
| Control levers with ball bearings |
| Angular gear of cast iron |
| Disengagement clutch of transmission, powered by tractor |
| Automatic tightening of the V-belts |
| CUTTING AND SPLITTING |
| Hard-metal blade 900 mm / 35.4" |
| Speed control for cutting |
| Automatic adjustable log-stop |
| Hydraulic log clamp |
| 2/4-way splitting wedge as standard |
| 2/6-way and 2/8-way as an option |
| Quick-release of splitting wedge |
| Hydraulic height adjustment of splitting wedge |
| Multi-phase debris removal |
| IN-FEED CONVEYOR |
| In-feed conveyor, belt 200 mm x 2,000 mm / 7.9 in x 78.8 in |
| Hydraulic log-stop, gives way automatically |
| Quick couplings for external logtable |
| Automatic cleaning of drive and return wheels |
| DISCHARGE CONVEYOR |
| 350 mm x 4,300 mm / 13.8" x 169.3" |
| Hydraulically-driven scraper conveyor with two chains |
| Lifting winch for conveyor |
| Speed control for discharge conveyor |
| Folding and swinging conveyor |
| Hydraulic swing of the conveyor as an option |
| MAXIMUM SIZE OF LOG |
| Maximum diameter of log: 37 cm / 14.6" |
| Length of log: 25 to 55 cm / 9.8 to 21.6" |
| DIMENSIONS AND WEIGHT IN TRANSPORT POSITION |
| Length: 2.85 m - 9.4 ft?? |
| Width: 1.45 m - 4.75 ft?? |
| Height: 2.45 m - 8.0 ft?? |
| Weight: 1,500 kg - 3,300 lbs |
| CE AND GS APPROVED | Approximate values for all specifications. |
