PALMS GRAPPLE LOADERS & TRAILERS

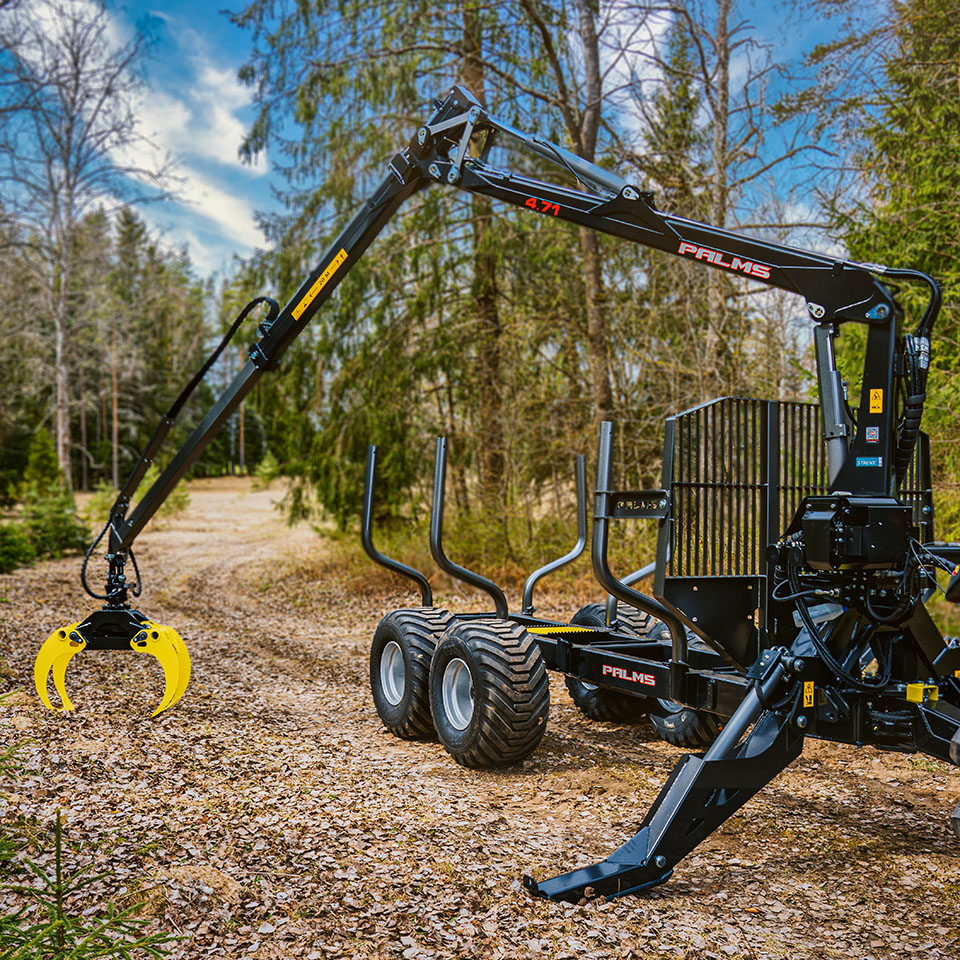

Palms Grapple Loader with Log Trailer Sturdy, durable and versatile Palms grapple log loaders and log trailers for professional use. Choose the right grapple loader according to reach and lifting capacity. Many control valve systems available. Customize to your specific needs.

The Palms log grapple loaders are available in these models:
Palms 2.42, Palms 3.53, Palms 3.67, Palms 4.70, Palms 5.72, Palms 7.72 and Palms 7.86.

The Palms trailers are available in these models:
Palms 6S, Palms 8S, Palms 9S, Palms 10D, Palms 12D, Palms 13D and Palms 15D.
S stands for single beam and D stands for double beam.

Just looking for a new grapple for your loader. Check the grapple packages available.

Check out the specs and give us a call and we will make you a good loader/trailer package deal!

IMAGES FOR PALMS GRAPPLE LOADERS & TRAILERS

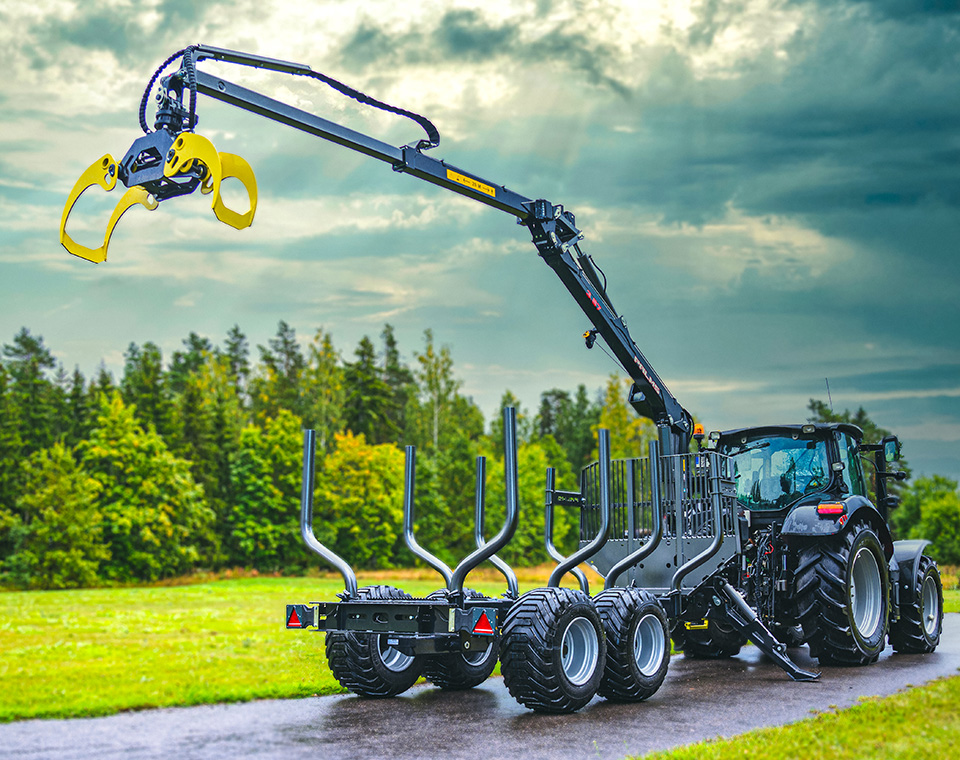

Palms Grapple Loader 4.70 with Log Trailer 9S
Palms Grapple Loader 4.70 with Log Trailer 9S
Palms Grapple Loader 4.70 with Log Trailer 9S
Palms Grapple Loader 4.70 with Log Trailer 9S
Palms Grapple Loader 4.70 with Log Trailer 9S

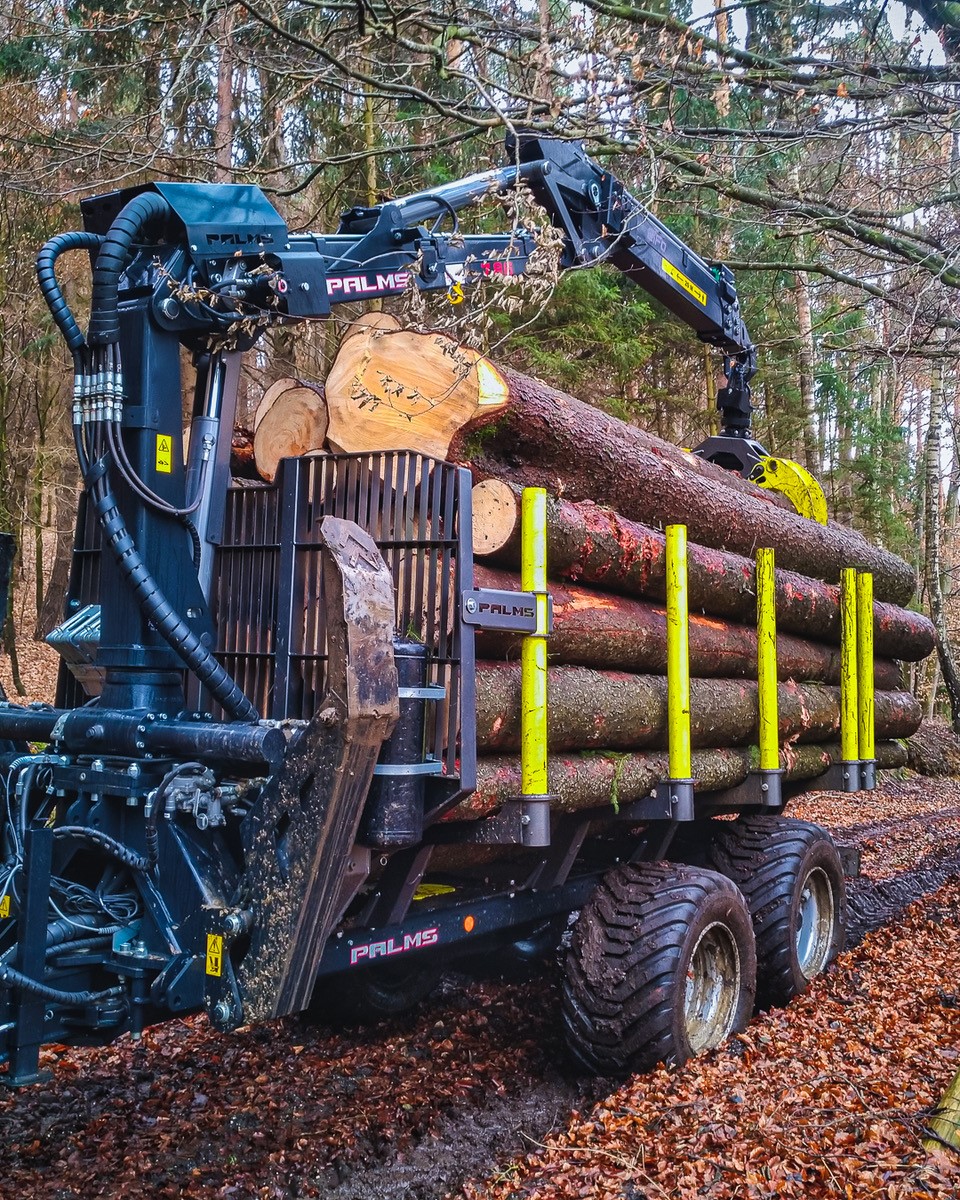

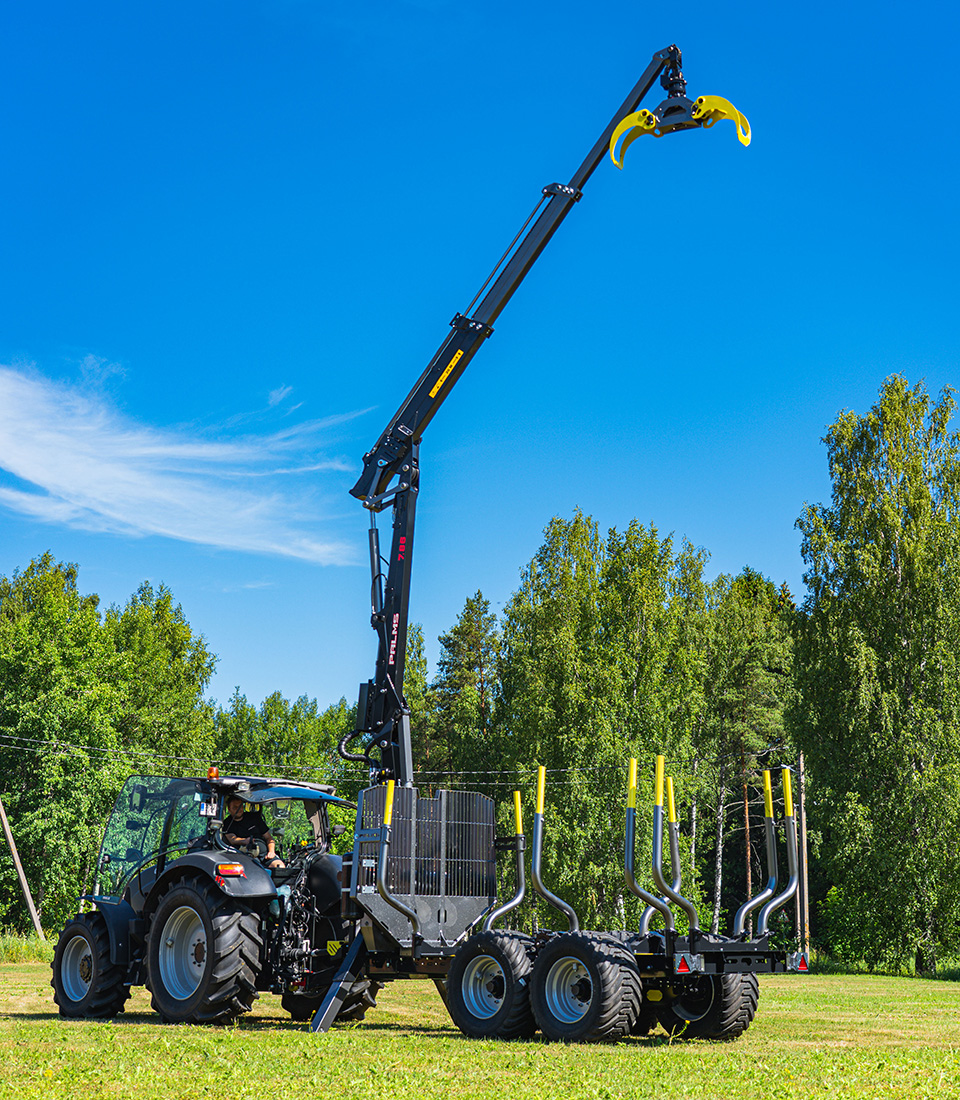

Palms Grapple Loader 7.86 with Log Trailer 13D

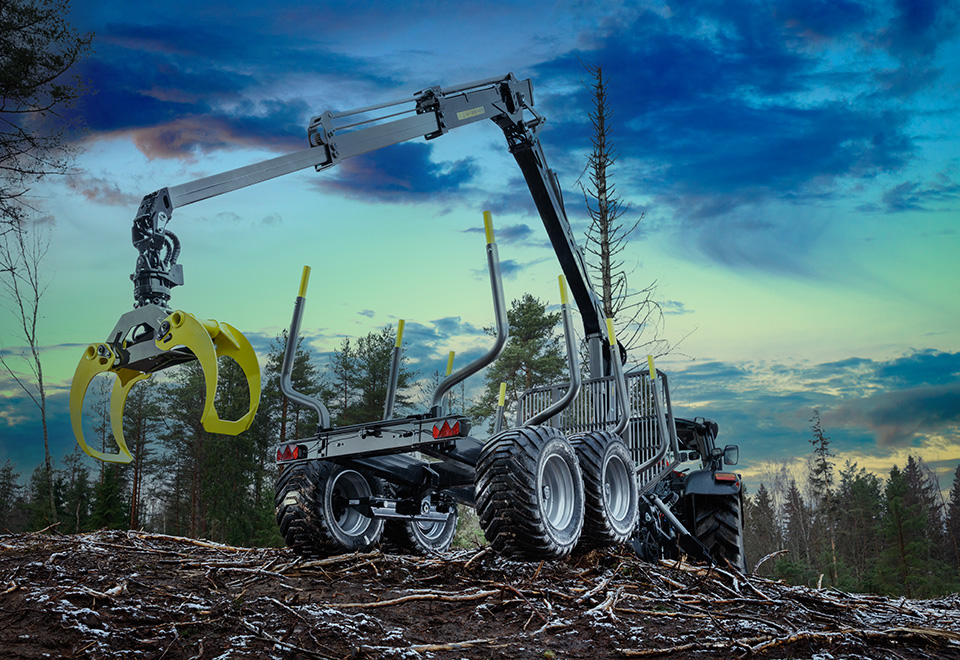

Palms Grapple Loader 7.86 with Log Trailer 13D 9S

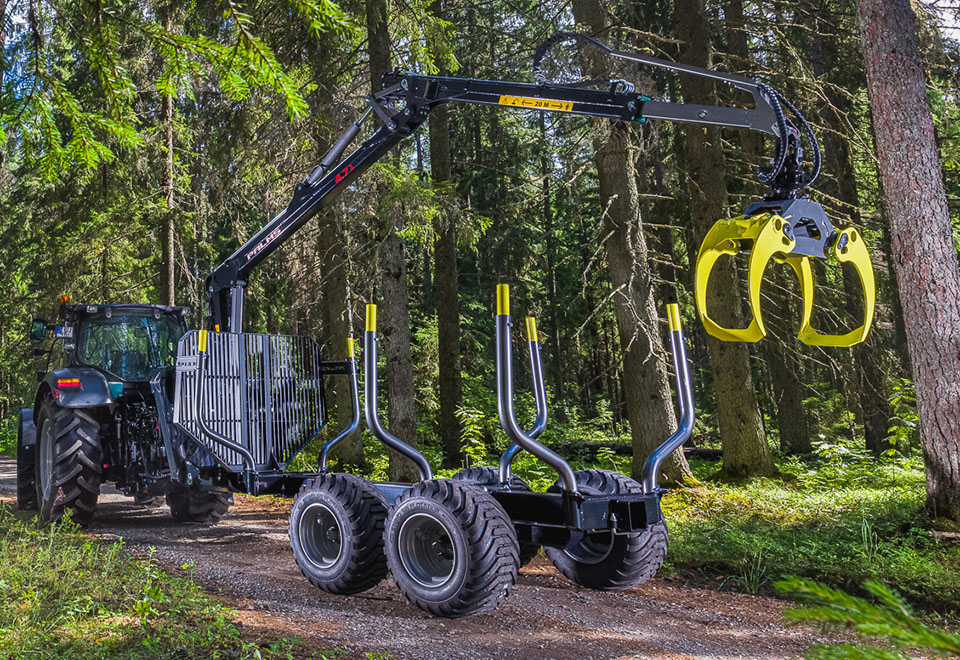

Palms Grapple Loader 4.70 with Log Trailer 9S

TECHNICAL SPECIFICATIONS FOR PALMS LOG LOADERS

PALMS LOG LOADERS 2.42 3.61 3.67 4.71 5.72 7.72 7.86
Lifting torque gross kNm 26 33 37 54 56 74 74
lbf-ft 19,200 24,300 27,300 39,800 41,300 54,600 54,600
Lifting torque gross HP version kNm - - - - 63 83 83
lbf-ft - - - - 46,500 61,200 61,200
Reach max m 4.2 6.1 6.7 7.1 7.15 7.2 8.6
ft 13.8 20.0 22.0 23.3 23.5 23.6 28.2
Lifting capacity at 4.0 m / 13.1 ft w/o grapple and rotator kg 570 580 710 1,040 1,100 1,400 1,250
lbs 1,250 1,280 1,570 2,300 2,425 3,090 2,760
Lifting capacity at full reach w/o grapple and rotator kg 540 350 410 535 640 760 530
lbs 1,190 770  900 1,180 1,410 1,680 1,170
Lifting capacity at 4.0 m / 13.1 ft w/o grapple and rotator HP version kg - - - - 1,230 1,600 1,460
lbs - - - - 2,710 3,530 3,220
Lifting capacity at full reach w/o grapple and rotator HP version kg - - - - 710 870 630
lbs - - - - 1,570 1,920 1,390
Telescopic boom stroke length m - 1.85 1.6 1.95 1.95 2.0 3.4
ft - 6.1 5.3 6.4 6.4 6.6 11.2
Slewing cylinders pcs 4
Slewing torque kNm 6.5 9 12 15 17 21 21
lbf-ft 4,800 6,640 8,850 11,060 12,540 15,490 15,490
Slewing angle deg 370 380
Rotator load max kN 45 55 60
lbf 10,100 12,300 13,500
Working pressure bar 190
PSI 2,760
Weight without legs/valveblock kg 360 410 620 710 820 1,160 1,280
lbs 790 900 1,370 1,570 1,810 2,560 2,820
Oilflow recommendation l/min 20 - 35 20 - 35 30 - 45 45 - 70 50 - 80 60 - 120 60 - 120
GPM 5 - 9 5 - 9 8 - 12 12 - 18.5 13 - 21 16 - 32 16 - 32
Recommended trailer   6S - 6SE 8SE - 10D 8SE - 10D 9S - 13D 9S - 15D 9S - 15D 9S - 15D
Approximate values for all specifications.

TECHNICAL SPECIFICATIONS FOR PALMS LOG TRAILERS

PALMS LOG TRAILERS 6S 8S 9S 10D 12D 13D 15D
Gross weight kg 8,500 10,500 12,000 13,000 14,000 16,000 18,000
lbs 18,700 23,100 26,500 28,700 30,900 35,300 39,700
Frame   140x140x6 160x160x8 200x200x6 2x(200x200x10) 2x(200x100x10) 2x(200x120x10 2x(250x1500x10)
Load area m2 1.5 1.0 2.25 2.4 2.5 2.85 3.0
ft2 16.15 21.53 24.22 25.83 26.91 30.68 32.29
Length of load area m 3.0 3.6 3.9 4.0 3.94 4.1 4.2
ft 9.8 11.8 12.8 13.1 12.9 13.5 13.8
Length total m 4.9 5.7 6.0 6.1 6.1 6.2 6.4
ft 16.1 18.7 19.8 20.1 20.0 20.5 21.1
Width total with standard wheels m 1.82 2.06 2.15 2.15 2.26 2.37 2.55
ft 5.97 6.76 7.05 7.05 7.41 7.78 8.37
Wheels standard   11,5/80-15,3 400/60-15.5 400/60-15.5 400/60-15.5 400/60-15.5 500/50-17 550/45-22.5
Loader lifting moment max kNm 30 47 65 75 75 80 85
lbf-ft 22,100 34,700 47,900 55,300 55,300 59,000 62,700
Recommended loader   - 3.67 3.67, 4.70, 5.72 3.67, 4.70, 5.72 3.67, 4.70, 5.72 4.70, 5.72, 5.85, 7.72, 7.86 5.72, 5.85, 7.72, 7.86
Approximate values for all specifications.
