PALMS GRAPPLES

Palms Grapple with Rotator Already have a grapple loader, but need a new grapple or rotator for it. We have the C1 and C3 grapple packages available. The package includes the grapple, rotator, two hoses and the pin.

Check out the specs and give us a call!

IMAGES FOR PALMS GRAPPLES AND ROTATORS

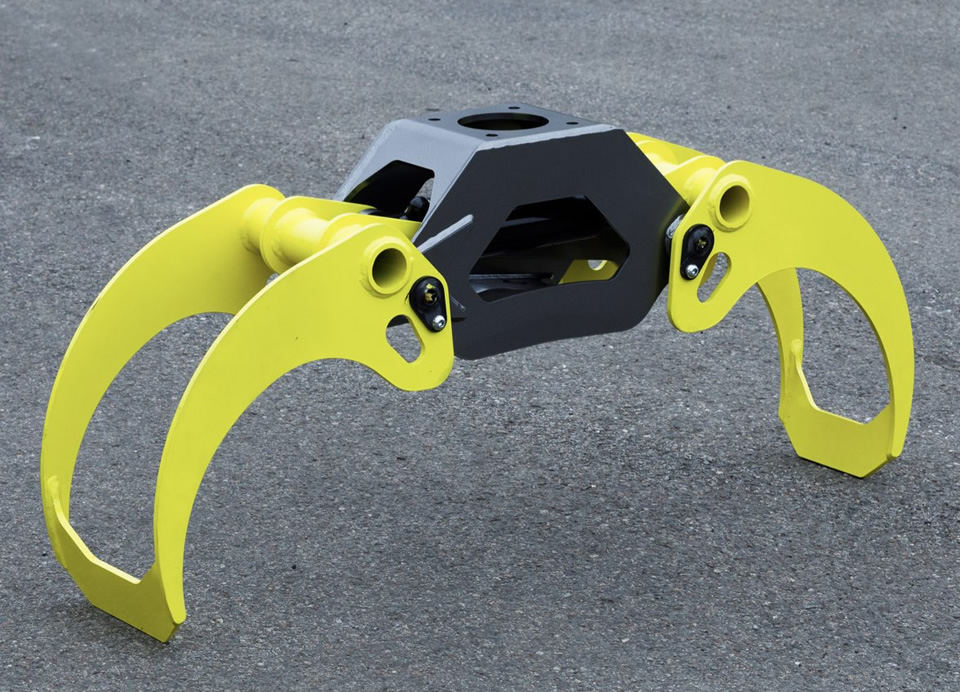

Palms Grapple C1

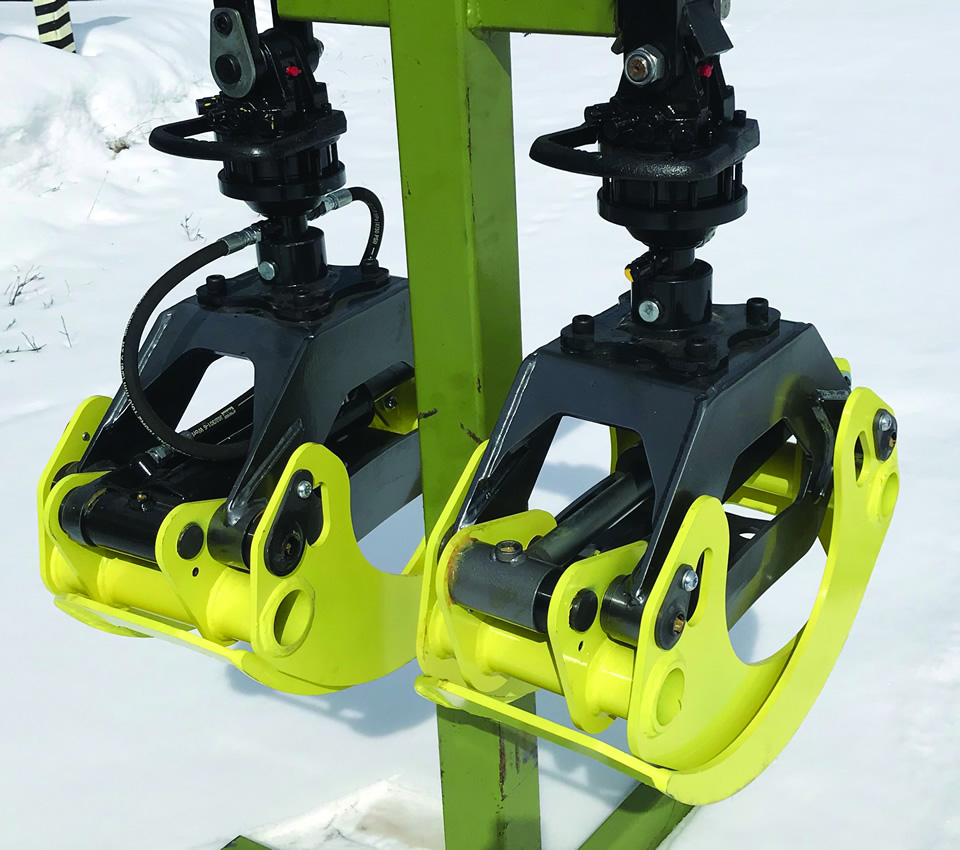

Palms Grapples C1 and C3

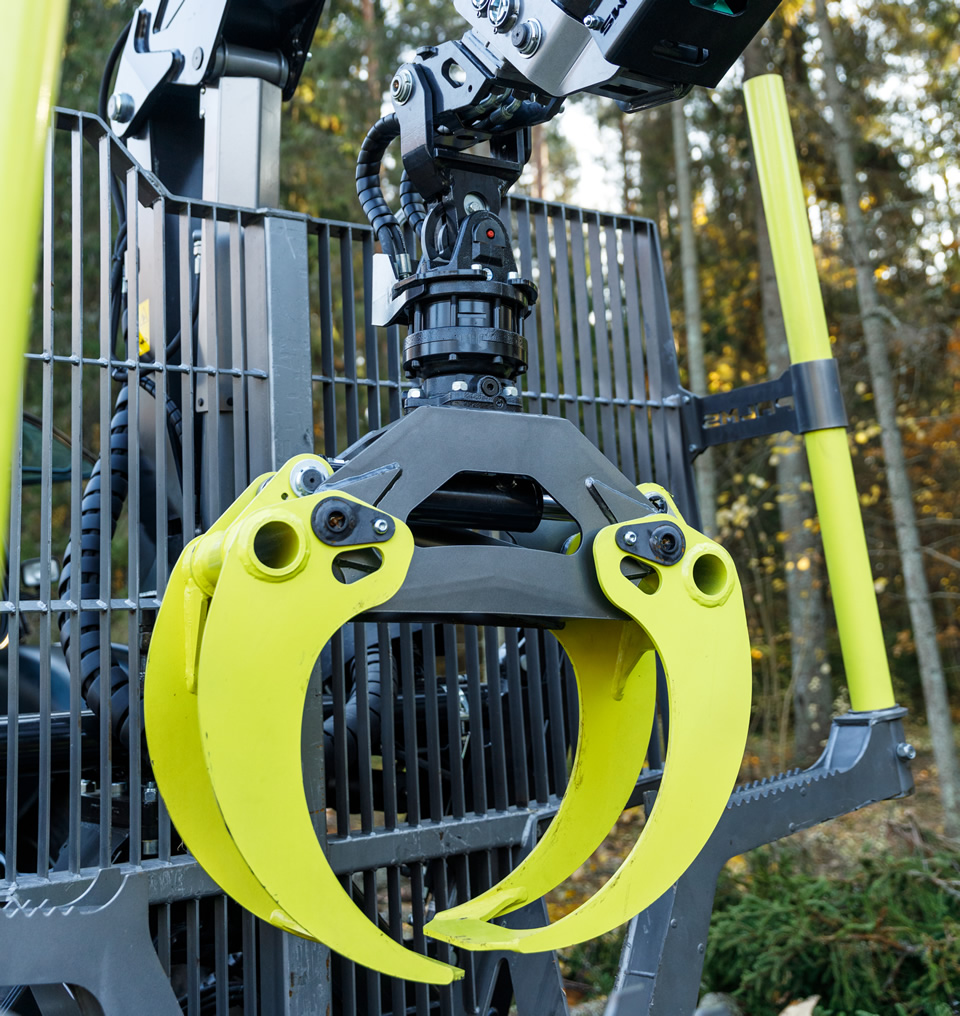

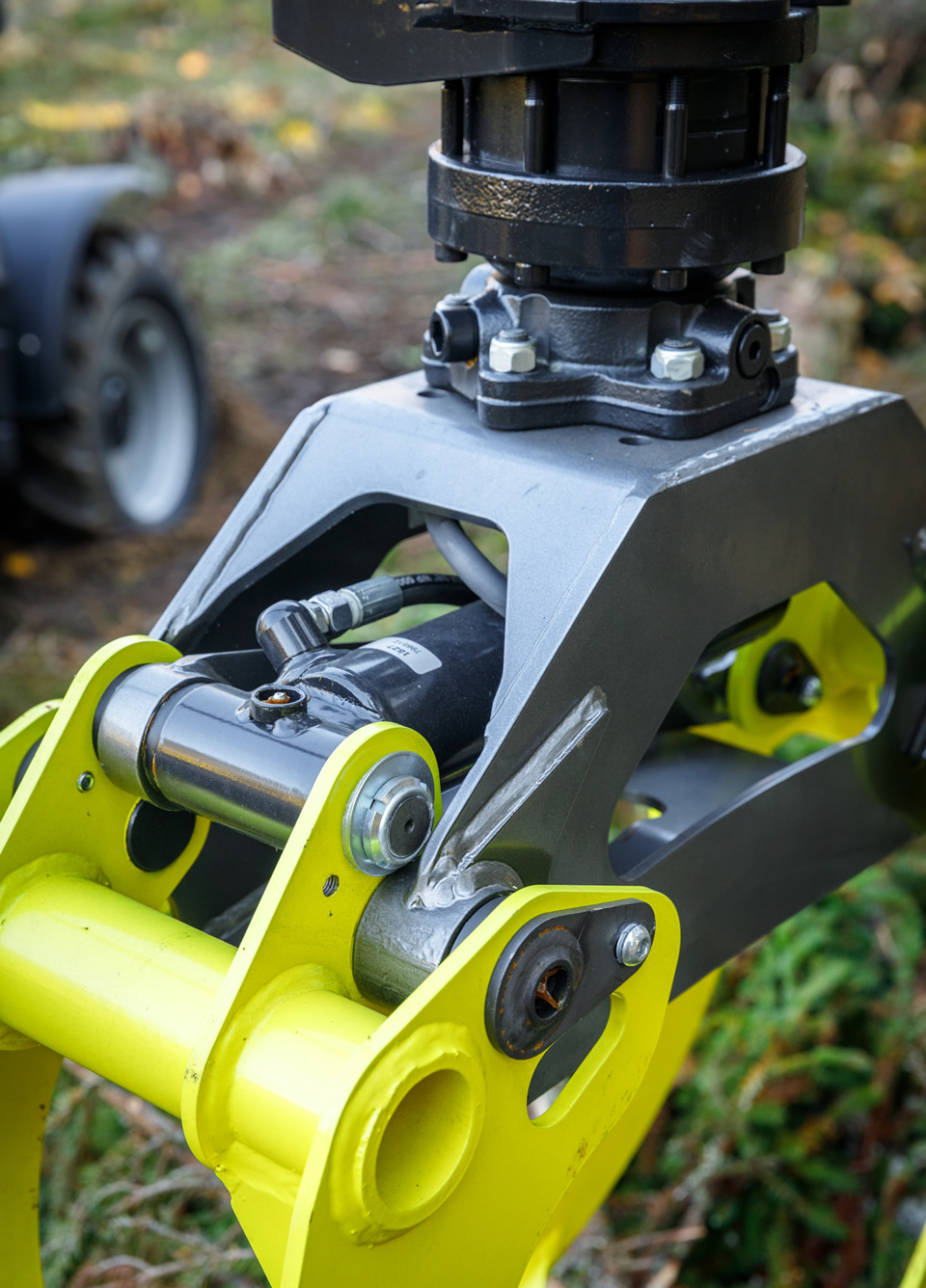

Palms Grapple
Palms Rotator

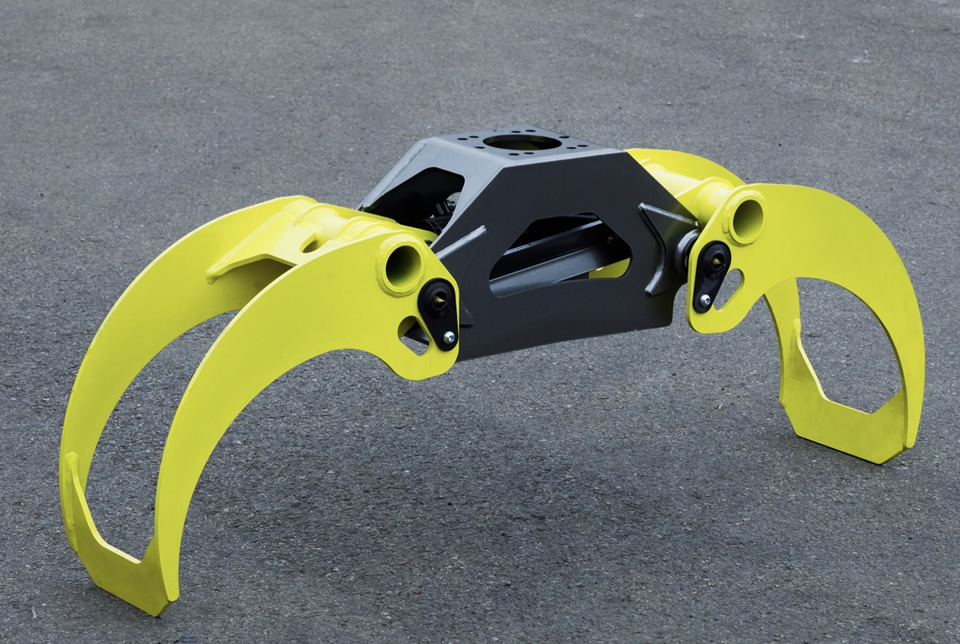

Palms Grapple C3

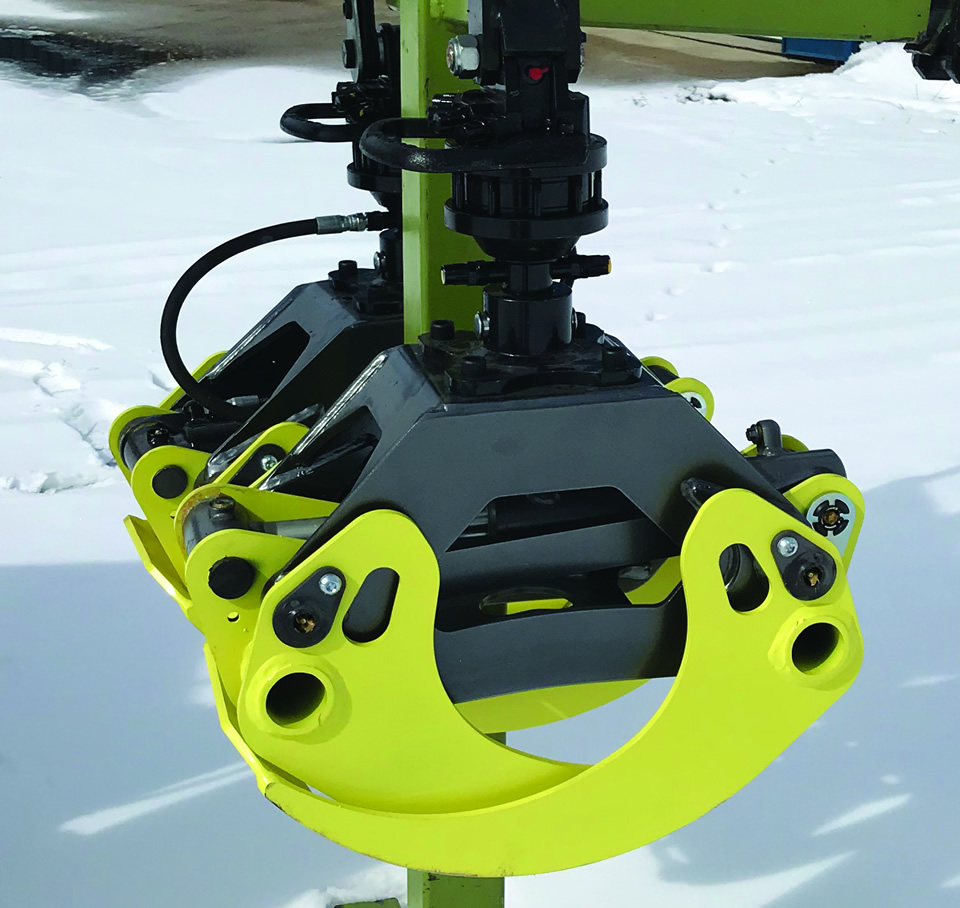

Palms Grapples C1 and C3
Palms Rotator
Palms Rotator

TECHNICAL SPECIFICATIONS FOR PALMS GRAPPLES C1 AND C3

PALMS GRAPPLES Grapple C1 Grapple C3
Maximum opening 1,230 mm 1,465 mm
48.4" 57.7"
Length closed 690 mm 765 mm
27.2" 29.9"
Height closed 480 mm 500 mm
18.9" 19.7"
Closing Diameter 80 mm 69 mm
3.1" 2.7"
Width 315 mm 340 mm
12.4" 13.4"
Weight without rotator 88 kg 114 kg
94 lbs 251 lbs
Approximate values for all specifications.
