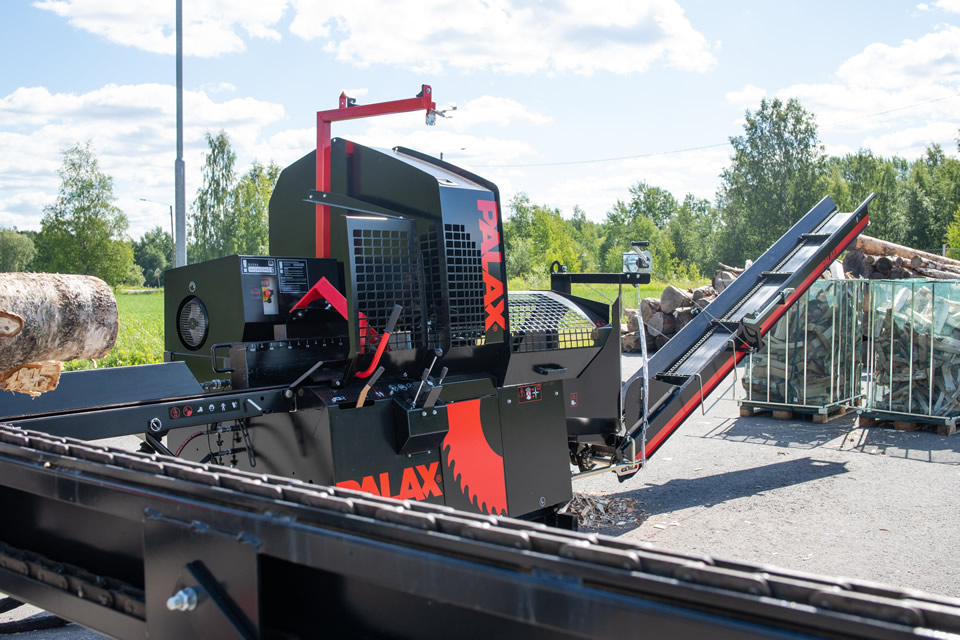

The Palax C750 revolutionizes firewood processing with its unbelievable speed and power. The processor comes with a 750 mm hard-tip blade that can cut up to 28 cm / 11" diameter wood. This is one of the fastest processors in its size on the market. The C750 has a excellent log flow from the in-feed conveyor to the discharge conveyor. The rear part of the machine has been made wider, making it easier for the wood to travel in the groove. With a robust splitting blade and improved log clamp the processor is very comfortable and safe to operate.

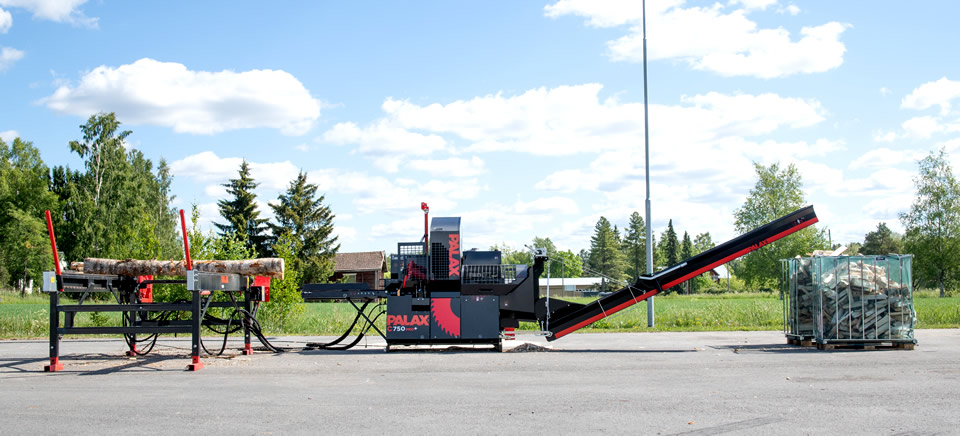

An in-feed conveyor and a 4.3 m (14 ft) swinging discharge conveyor come as standard with the processor. The processor guarantees a brisk working pace due to its automatic high speed valve maximizing the splitting speed. The debris grate of the splitting groove collects any debris created from the splitting, resulting in clean and easy-to-dry wood.

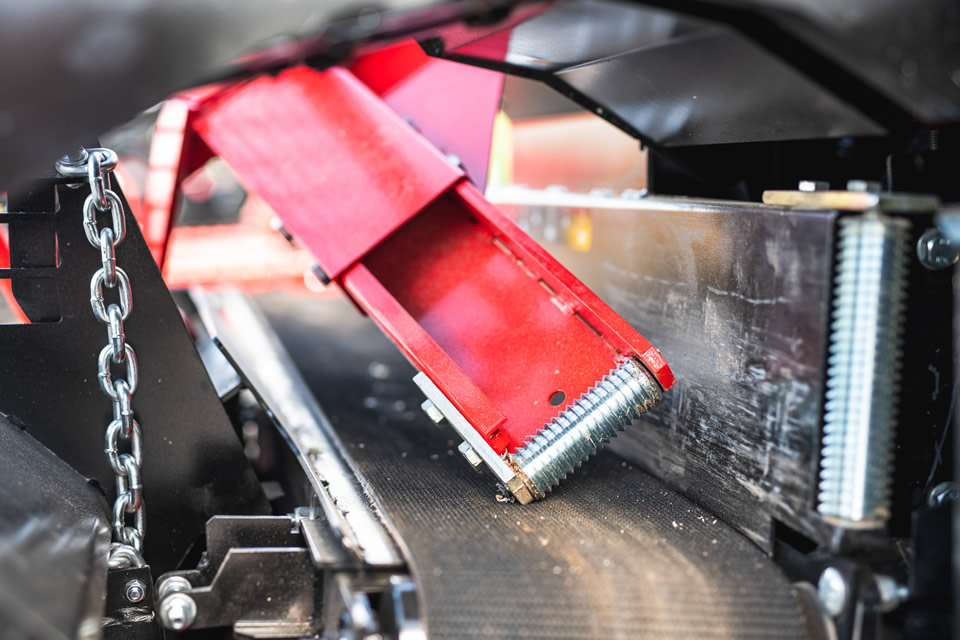

Equipped with lubed-for-life ball bearings the machine operates precisely, easily and virtually without maintenance. Also the chute is equipped with a sensor so that even a small log activates the splitting motion.
Automatic tightening of the V-belts keeps the angular gear belts at the correct tightness reducing strain on the transmission and significantly extending the service life of the belts.
The height adjustment of the wedge is stepless, easy-to-operate and reliable. The wedge is equipped with a quick-release.
The C750 is available as a PTO tractor driven. Choose from a Pro or a Pro+ model.
|Tractor P.T.O. driven|
|Splitting cylinder 9,000 kg / 19,800 lbs|
|Automatic high-speed valve|
|Articulated shaft at 450 r.p.m.|
|Articulated shaft, suitable size e.g. Bondioli 143|
|Speed Pro: 4.5 sec / Pro+: 2.6 sec|
|Maximum diameter of log: 28 cm / 11"|
|Cutting length: 25 to 55 cm / 10" to 21.6"|
|Hard metal blade 750 mm / 29.5"|
|Splitting wedge 2/4-way as standard|
|Splitting wedge 2/6-way as an option|
|Stepless height adjustment of the quick-release splitting wedge|
|Multi-phase debris removal|

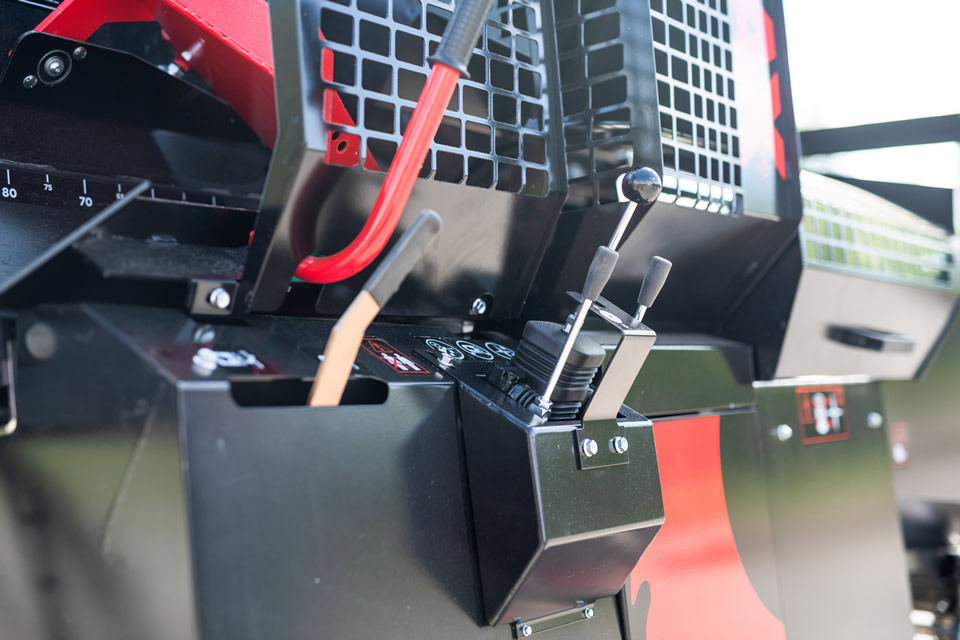

|Control levers with ball bearings|
|Palax 43 scraper conveyor: length 4.3 m / 14.1 ft with 2 chains|

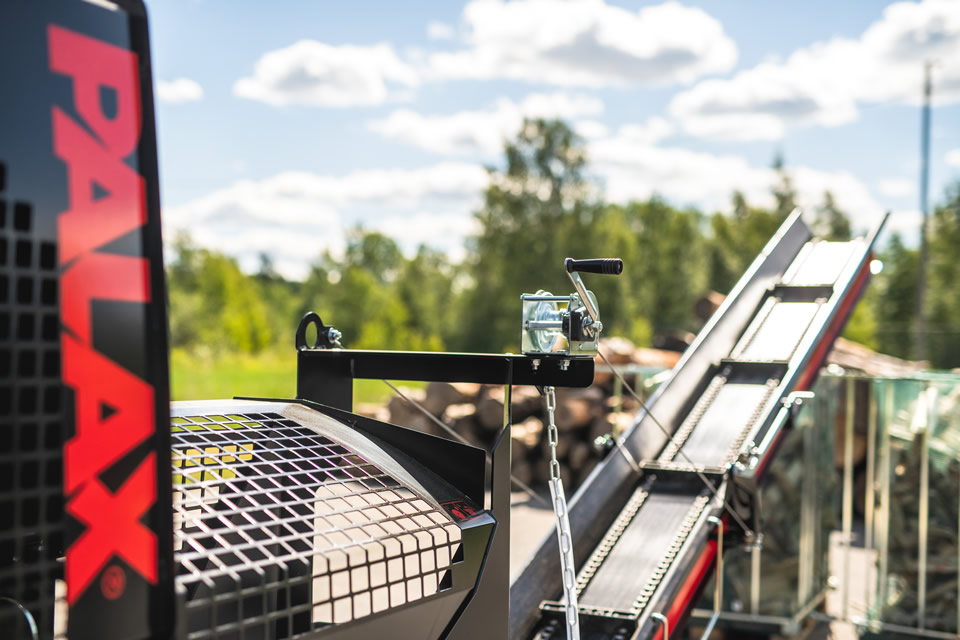

|Lifting winch for conveyor|
|Foldable and swinging conveyor|
|Automatic tightening of the conveyor chains|
|Approximate values for all specifications.|
